Services - Centerless Grinding

TPG Alloy Bar Centerless Ground and Polished Aluminum Bar Stock Heavy Duty Hydraulic Cylinders Tgp Stainless Bar - Bearing Shaft Quality

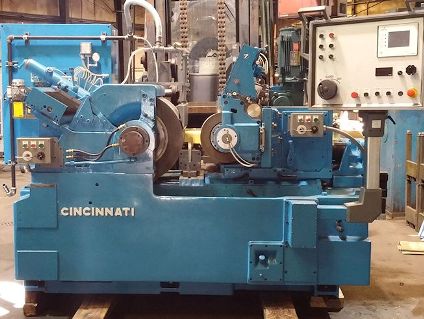

Centerless Grinding Centerless GrinderAt Centerless Grinding Service, we are a leading supplier of centerless ground and polished products as well as a provider of a variety of grinding capabilities. Our centerless grinding services are ideal for precision grinding the outside diameter of any cylindrical shaped part, and we can work on materials from stainless steel to ceramics and other exotic materials. Precision machines allow us to work on standard and non-standard sizes up to 60' in length and weighing as much as 10,000 lbs., all while maintaining tolerances up to ±.0002". With over 40 years of experience, our seasoned staff can grind round bar and tubing in diameters from 1/8" to 16", and the finished product can be tailored to a number of specific end uses. In addition, our ability to grind hardened parts and offer surface finishes to four micro inches makes our services ideal for applications in the automotive, marine, pulp and paper, and medical industries.

Our attention to detail and dedication to meeting customer's needs allow to us take on projects that often call for quick delivery and turnaround, as well as handle production volumes from small to large quantities. At Centerless Grinding, we perform work of the highest quality and are in full compliance with MIL-Q-9858A, MIL-I-45208A, and ISO 9001 standards.

RaQTo learn more about our centerless ground and polished products, contact us or see the table below.

Past Projects

Precision Grinding Process Capabilities:

Grinding Process Centerless
Thru-Feed
In-Feed
Shape Round
Form Bar Stock
Tubing
Material (Metals)
Carbon Steel
Aluminum
Alloy Steel
Stainless Steel
Tools Steel
Brass
Copper
Bronze
Exotics
Exotic Materials
Castings
Material (Others) Plastics
Ceramics
Part Diameter 1/8" to 16"
Part Length Up to 60 ft.
Part Weight Up to 10,000 lbs.
Tolerance (+/-) .0002 in
Surface Finish Down to 4 µin
Inspection Micrometers (Digital and Laser)
Indicators (Straightness)
Quality Control Procedures
Documentation Material Certification
Traceability
Additional Services
Polishing
Packaging
Shipping
Finished Bar Stock Inventory
Packaging
Standard Bundle
Bundle & Paper or Cloth Wrap
Collar Bundle and Wrap
Fiber Tube and Bundle
Bundle and Skid
Bundle Wrap and Skid
Fiber Tube and Skid
Wooden Boxes
Collar and Box
Fiber Tube and Box
Paper or Plastic Interleaf and Box
Wrap and Box
Cardboard and Paper Boxes
Production Volume Small and Large Quantity
Typical Lead Times 7-10 Days (Processing)
1-2 Days (Inventory - Stock)
